Fine 350 Mesh Roll Stainless Steel Screen Printing Mesh

Brand Name : R&K

Model Number : 350 mesh

Certification : ISO9001:2008,SGS,FDA

Place of Origin : Hebei,China

MOQ : 1m

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.

Supply Ability : 150000 square meters per month

Delivery Time : 5-8 work days

Packaging Details : paper inside, carton case outside,5-10rolls in one carton

Name : Fine 350 Stainless Steel Screen Printing Wire Mesh Roll

Mesh count : 350 mesh

Material : stainless steel

Weave style : Plain Weave

Usage : LCD Printing

Feature : High Temperature Resistance

Contact Now

Fine 350 Mesh Stainless Steel Screen Printing Wire Mesh Roll

Applications of the 350 Mesh Stainless Steel Screen Printing Mesh:

Stainless steel wire mesh usually can used for PCB printing, filteration, Processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

Details of the 350 Mesh Stainless Steel Screen Printing Mesh:

Mesh /inch: 350 mesh
Wire diameter: 25um
Aperture: 48 um
Thickness: 52 um
Hole Shape: Square
Open Area: 43%
Length: 30 Meters
Keywords: stainless steel screen printing mesh
Application: Screen Printing
Feature: High Temperature Resistance
Width Customer Required Screen Printing Mesh
Specification: 200 mesh
Product Name Fine 350 Mesh Stainless Steel Screen Printing Wire Mesh Roll
Color: slivery
Certificate ISO9001
Supply Ability 150000 square meters per month
Packaging Details paper inside, carton case outside,5-10rolls in one carton

Specifications of the Stainless Steel Screen Printing Mesh:

Specification Mesh/
inch		 Wire Dia
(μm)		 Open area
Ratio(%)		 Apereture
(μm)		 Thickness
(μm)		 Calendered Thickness
(μm)		 Theoretical
lnk(cm^/m^)
40*40*160 40 160 56 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39 198 235-245 As order 92.9
80*80*90 80 90 52 228 175-180 As order 103
80*8*50 80 50 71 268 95-100 As order 78
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50
165*165*35 165 35 60 119 70-75 As order 48
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43
200*200*50 200 50 37 77 98-103 As order 42
230*230*35 230 35 46.7 75 72-76 50-67 37
250*250*40 250 40 36.8 62 82-86 50-80 34
250*250*30 250 30 49.7 72 64-68 40-58 30
250*250*35 250 35 43 67 76-78 57-70 32
270*270*35 270 35 39.4 59 76-80 58-70 30
300*300*30 300 30 41.7 55 66-68 4-59 28
325*325*30 325 30 38 48 66-68 45-60 24
325*325*28 325 28 41.2 50 63-64 40-56 26.4
325*325*23 325 23 49.8 55 49-53 37-41 25.4
350*350*35 350 25 43 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19
400*400*18 400 18 51.3 46 36-40 28-30 20
500*500*18 500 18 41.7 33 36-40 23-29 15.3

Advantages of the 350 Mesh Stainless Steel Screen Printing Mesh:

  • High tension with stable ability
  • Super precision, uniform wire diameter and aperture
  • Low elongation
  • High flexibility
  • Excellent corrosion resistance
  • Non-electrostatic
  • Good heat-melting resistance
  • Suitable for heat-melting ink
  • Good solvent resistance
  • Long service life

Fine 350 Mesh Roll Stainless Steel Screen Printing Mesh


Product Tags:

roll stainless steel screen printing mesh



350 stainless steel screen printing mesh



stainless steel screen printing mesh roll


Cheap Fine 350 Mesh Roll Stainless Steel Screen Printing Mesh for sale

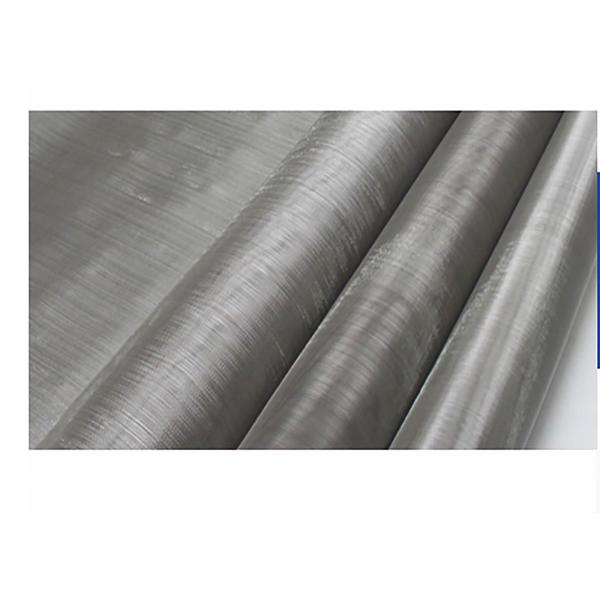

Fine 350 Mesh Roll Stainless Steel Screen Printing Mesh Images
